Basic types

AccessDetail

Purpose: Classification of high-voltage distribution line feeding property.

Field	Restrictions	aseXML	Schema
AccessDetail	xsd:string maxLength value=”160”	simple	Common_r46

AppointmentDateTime

Field	Restrictions	aseXML	Schema
AppointmentDateTime	sequence	complex	Common_r46
Date	xsd:date (ccyymmdd)	element	Common_r46
Time	minOccurs=”0” xsd:time (hh:mm:ss.sss+hh:mm)	element	Common_r46

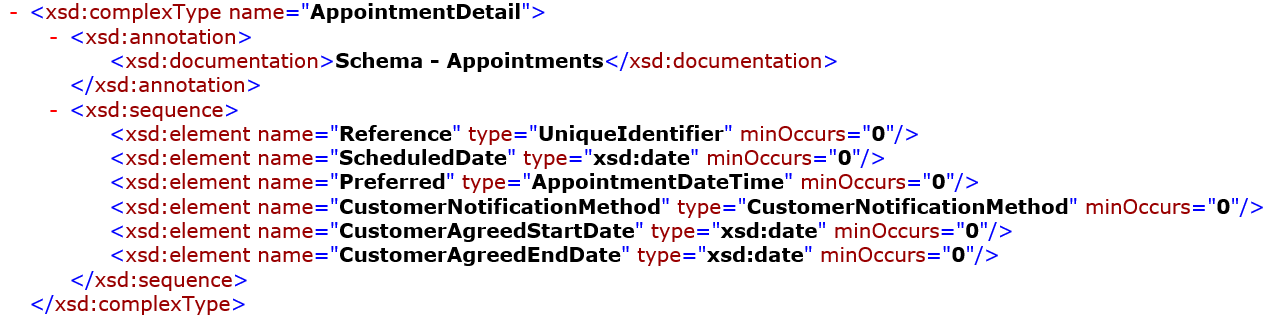

AppointmentDetail

Field	Restrictions	aseXML	Schema
AppointmentDetail	sequence	complex	Common_r46
Preferred	minOccurs=”0”	AppointmentDateTime	Common_r46
Reference	minOccurs=”0”	UniqueIdentifier	Common_r46
ScheduledDate	minOccurs=”0”	xsd:date	Common_r46
CustomerNotificationMethod	minOccurs=”0”	CustomerNotificationMethod	Common_r46
CustomerAgreedStartDate	minOccurs=”0”	xsd:date	Common_r46
CustomerAgreedEndDate	minOccurs=”0”	Xsd:date	Common_r46

CustomerClassificationCode

Field	Restrictions	aseXML	Schema
CustomerClassificationCode	xsd:string maxLength value=”20” minLength value=”1” whitespace value=”collapse”	simple	Common_r46

GasMeterDogCode

Field	Restrictions	aseXML	Schema
GasMeterDogCode	xsd:string enumerated list (see GasMeterDogCode list)	simple	Common_r46

Table 67 GasMeterDogCode list

Bluff	Dog Caution	Dog OK	Friendly	No Dog	Savage	Tied

GasMeterPosition

Field	Restrictions	aseXML	Schema
GasMeterPosition	xsd:string enumerated list (see GasMeterPosition list)	simple	Common_r46



Table 68 GasMeterPosition list

BA
BG
BH
BR
BV
BW
BY
CE
CP
DR
FA
FD
FF
FH
FL
FR
FS
FV
FW
GA
GR
KC
KI
LS
OB
PA
PO
PY
RS
SH
SK
SP
SR
TO
UB
UC
UF
UL
UP
UR
US
WH







HazardCode

Purpose: To define a list of valid hazard codes. No codes currently defined.

Field	Restrictions	aseXML	Schema
HazardCode	xsd:string For the list of codes, see B2B Procedure: Customer and Site Details Notification.	simple	Common_r46

HazardDescription

Field	Restrictions	aseXML	Schema
HazardDescription	maxLength value=”100”xsd:string ≤ 100 chars (for examples, see HazardDescription examples)	simple	Common_r46



Table 69 HazardDescription examples

Customer Reports No Hazard
Dog
Electric Fence
Customer Caution
Electrical Safety Issue
Asbestos FuseAsbestos Board
Not Known To Initiator

MeterSerialNumber

Purpose: MSATS Market Settlement and Transfer Solutions. The procedures published by AEMO under clause 7.2.8 of the National Electricity Rules, which include those governing the recording of financial responsibility for energy flows at a connection point, the transfer of that responsibility between market participants, and the recording of energy flows at a connection point. Data Model The definition of the interface to participants of data published by AEMO for gas or electricity. A database conforming to the Data Model can contain a local copy of all current participant-specific data recorded in the main database. The Data Model includes database tables, indexes, and primary keys. Column – MeterSerial.

Field	Restrictions	aseXML	Schema
MeterSerialNumber	maxLength value=”12” xsd:string ≤ 12 chars	simple	Common_r46

MethodSent

Field	Restrictions	aseXML	Schema
MethodSent	xsd:string enumerated list (see Table 20 MethodSent list)	simple	Common_r46



Table 70 Table 20 MethodSent list

Faxed	Email	Online	OnSite

PartyIdentifier

Purpose: Identify a communicating party within aseXML A standard for energy transactions in XML. A set of schemas and usage guidelines that define how data should be exchanged under FRC in the gas and electricity industries in Australia..

Detail: Allows identification of an entity involved in the energy industry.

Field	Restrictions	aseXML	Schema
PartyIdentifier	There is no default. If the context attribute is not provided, the PartyIdentifier is interpreted according to the rules for the market where it is used.	complex	Common_r46
context	Allows differentiation between identification mechanisms for parties. xsd:string enumeration value=”ABN” indicates the value is treated as an Australian Business Number.	simple	Common_r46
description	xsd:string	simple	Common_r46



RoleIdentifier

Purpose: Identify the roles a party might perform.

Detail: Assists identification of the correct role. The mapping between codes and descriptions is provided to participants via the Table Replication transaction exchanges. MSATS Data Model Column – RoleID.

Field	Restrictions	aseXML	Schema
RoleIdentifier	xsd:string ≤ 4 chars maxLength value=”4”	simple	Common_r46

SafetyCertificateType

Field	Restrictions	aseXML	Schema
SafetyCertificateType	sequence	complex	Common_r46
ID	minOccurs=”0”	ShortUniqueIdentifier	Common_r46
MethodSent	enumerated list	MethodSent	Common_r46

ShortUniqueIdentifier

Field	Restrictions	aseXML	Schema
ShortUniqueIdentifier	minLength value=”1” maxLength value=”15 xsd:string 1-15 chars	simple	Common_r46

ServicePoint

Purpose: Define the service point address and other properties.

Field	Restrictions	aseXML	Schema
ServicePoint	sequence	complex	Common_r46
Address	minOccurs=”0”	Address	ClientInformation_r46
AccessDetails	minOccurs=”0”	AccessDetail	Common_r46
Hazard	minOccurs=”0”, maxOccurs=”unbounded”	SiteHazard	Common_r46
MelwayGridReference	string, minOccurs=”0”, maxLength value=”9”	element	Common_r46
DogCode	minOccurs=”0”	GasMeterDogCode	Common_r46
MeterPosition	minOccurs=”0”	GasMeterPosition	Common_r46

SiteHazard

Field	Restrictions	aseXML	Schema
SiteHazard	sequence	complex	Common_r46
Code	minOccurs=”0”	HazardCode	Common_r46
Description	enumerated list	HazardDescription	Common_r46
